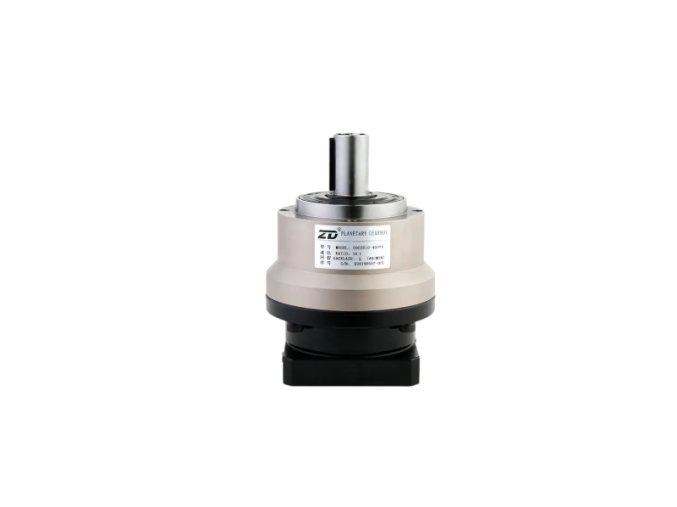

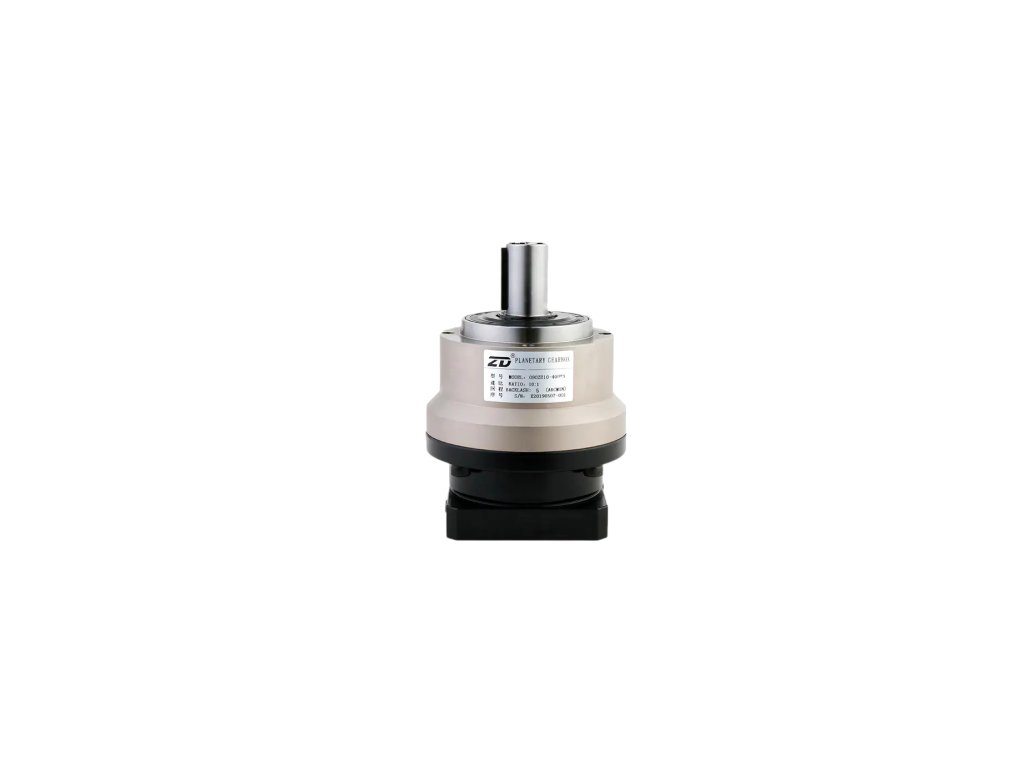

Planet Redüktör Çift Kademe 90 ZE 750 T3 İ20 19 P2 (4.008.23.40.090.020.19.2)

Neohodnoceno

1 z 2

D1: 80;
D2: M6;
D3: 22;
D4: 68;
D7: 104;
C1: 90;
C2: M6;
C3: 19;
C5: 70;
C7: 80;
C9: 194,5;
L2: 46;
L3: 8;
Backlash Arcmin: ≤7;

Dostupnost	2 - 5 týdnů
9 412 Kč / ks

Parametry

Kód produktu	4.008.23.40.090.020.19.2
Kategorie	ZD Reducers

Tisk Dotaz

Popis
Diskuze

Popis

Code	Name	D1	D2	D3	D4	D7	C1	C2	C3	C5	C7	C9	L2	L3	Backlash Arcmin
4.008.23.40.050.005.10.2	Planet Redüktör Tek Kademe 50 ZE 100 T3 İ10 8 P2	44	M4	12	35	50	46	M4	8	30	43	87,5	24,5	4	≤5
4.008.23.40.070.005.14.2	Planet Redüktör Tek Kademe 70 ZE 200 T3 İ5 14 P2	62	M5	16	52	70	70	M5	14	50	60	159	36	6	≤5
4.008.23.40.070.010.14.2	Planet Reducer Single Stage 70 ZE 200 T3 I10 14 P2	62	M5	16	52	70	70	M5	14	50	60	159	36	6	≤5
4.008.23.40.070.020.14.2	Planet Reducer Two-Stage 70 ZE 200 T3 I20 14 P2	62	M5	16	52	70	70	M5	14	50	60	159	36	6	≤7
4.008.23.40.090.005.14.2	Planet Reducer Single Stage 90 ZE 400 T3 I5 14 P2	80	M6	22	68	104	70	M5	14	50	80	143,5	46	8	≤5
4.008.23.40.090.010.14.2	Planet Reducer Single Stage 90 ZE 400 T3 I10 14 P2	80	M6	22	68	104	70	M5	14	50	80	191,5	46	8	≤5
4.008.23.40.090.020.14.2	Planet Reducer Two-Stage 90 ZE 400 T3 I20 14 P2	80	M6	22	68	104	70	M5	14	50	80	183,5	46	8	≤7
4.008.23.40.090.005.19.2	Planet Reducer Single Stage 90 ZE 750 T3 I5 19 P2	80	M6	22	68	104	90	M6	19	70	80	146,5	46	8	≤5
4.008.23.40.090.010.19.2	Planet Reducer Single Stage 90 ZE 750 T3 I10 19 P2	80	M6	22	68	104	90	M6	19	70	80	146,5	46	8	≤5
4.008.23.40.090.020.19.2	Planet Redüktör Çift Kademe 90 ZE 750 T3 İ20 19 P2	80	M6	22	68	104	90	M6	19	70	80	194,5	46	8	≤7
4.008.23.40.090.005.22.2	Planet Reducer Single Stage 90 ZE 1000 T4 I5 22 P2	80	M6	22	68	104	145	M8	22	110	130	162	46	8	≤5
4.008.23.40.090.010.22.2	Planet Reducer Single Stage 90 ZE 1000 T4 I10 22 P2	80	M6	22	68	104	145	M8	22	110	130	162	46	8	≤5
4.008.23.40.090.020.22.2	Planet Reducer Two-Stage 90 ZE 1000 T4 I20 22 P2	80	M6	22	68	104	145	M8	22	110	130	210	46	8	≤7
4.008.23.40.120.005.22.2	Planet Reducer Single Stage 120 ZE 1000 T4 I5 22 P	108	M8	32	90	130	145	M8	22	110	130	194,5	70	17	≤5
4.008.23.40.120.010.22.2	Planet Reducer Single Stage 120 ZE 1000 T4 I10 22 P2	108	M8	32	90	130	145	M8	22	110	130	194,5	70	17	≤5
4.008.23.40.120.020.22.2	Planet Reducer Two-Stage 120 ZE 1000 T4 I20 22 P2	108	M8	32	90	130	145	M8	22	110	130	244	70	17	≤7
