Planet Reducer Two-Stage 40 ZDE 50 T3 I20 8 P2 (4.008.23.30.040.020.08.2)
Popis

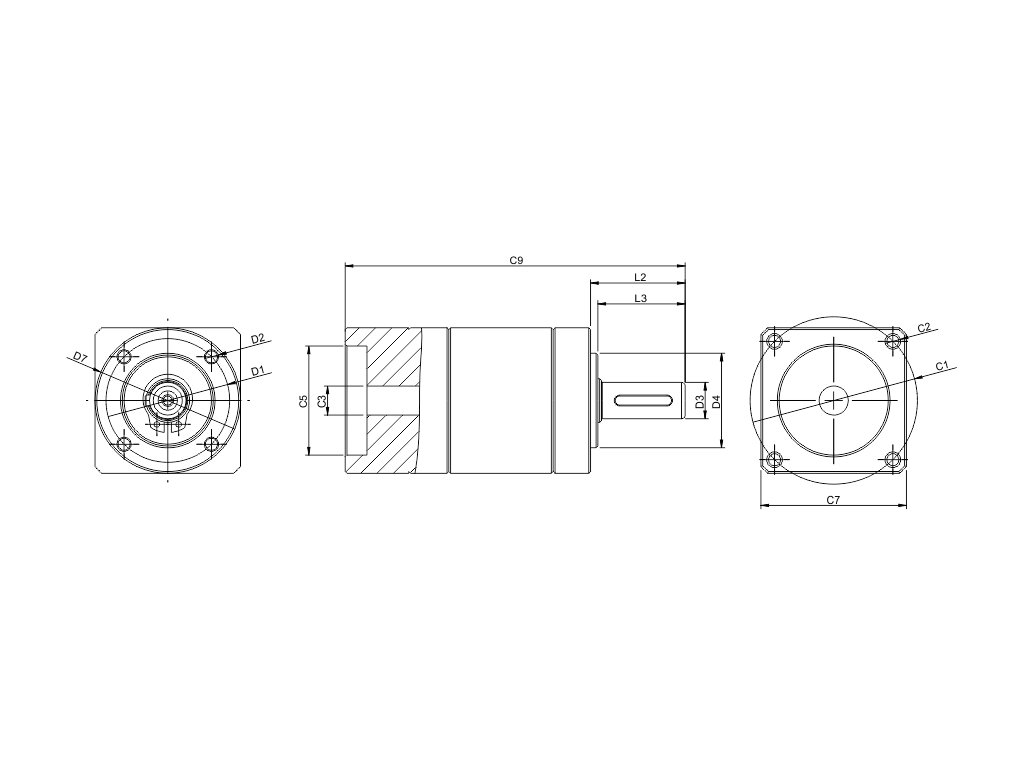

| Code | Name | D1 | D2 | D3 | D4 | D7 | C1 | C2 | C3 | C5 | C7 | C9 | L2 | L3 | Backlash Arcmin |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4.008.23.30.040.005.08.2 | Planet Reducer Single Stage 40 ZDE 50 T3 I5 8 P2 | 34 | M4 | 10 | 26 | 40 | 46 | M4 | 8 | 30 | 40 | 93,5 | 26 | 2 | ≤12 |
| 4.008.23.30.040.010.08.2 | Planet Reducer Single Stage 40 ZDE 50 T3 I10 8 P2 | 34 | M4 | 10 | 26 | 40 | 46 | M4 | 8 | 30 | 40 | 93,5 | 26 | 2 | ≤12 |
| 4.008.23.30.040.020.08.2 | Planet Reducer Two-Stage 40 ZDE 50 T3 I20 8 P2 | 34 | M4 | 10 | 26 | 40 | 46 | M4 | 8 | 30 | 40 | 119 | 26 | 2 | ≤15 |
