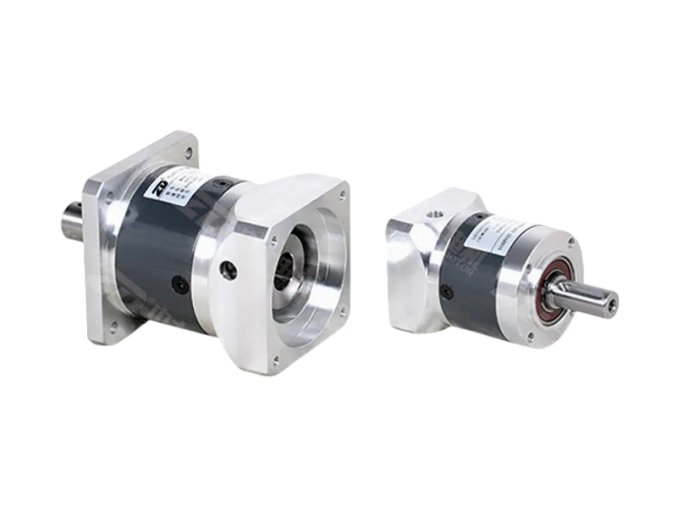

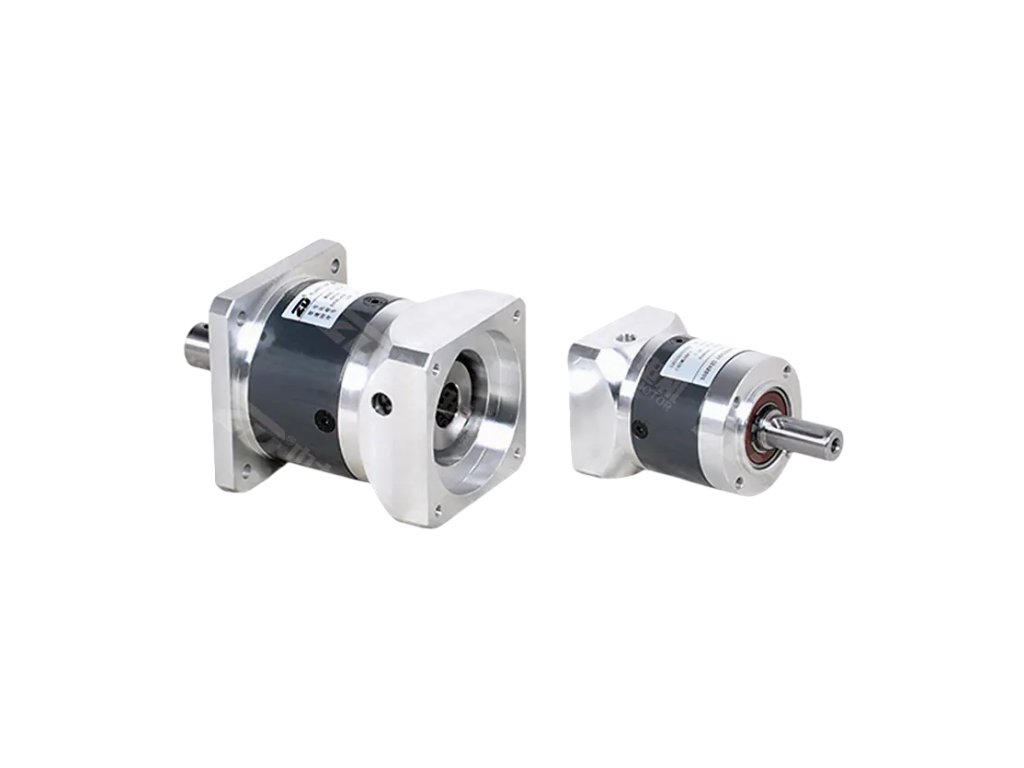

Planet Reducer Single Stage 120 ZDF 1000 T5 I5 22 P2 (4.008.23.31.120.005.22.2)

Neohodnoceno

1 z 2

D1: 130;
D2: 8,5;
D3: 25;
D4: 110;
D7: 165;
C1: 145;
C2: M8;
C3: 22;
C5: 110;
C7: 130;
C9: 207,2;
L2: 55;
L3: 4;
Backlash Arcmin: ≤8;

Dostupnost	2 - 5 týdnů
6 729 Kč / ks

Parametry

Kód produktu	4.008.23.31.120.005.22.2
Kategorie	ZD Reducers

Tisk Dotaz

Popis
Diskuze

Popis

Code	Name	D1	D2	D3	D4	D7	C1	C2	C3	C5	C7	C9	L2	L3	Backlash Arcmin
4.008.23.31.040.005.08.2	Planet Reducer Single Stage 40 ZDF 50 T3 I5 8 P2	50	3,5	10	26	58	45	M4	8	30	40	93,5	26	2	≤12
4.008.23.31.040.010.08.2	Planet Reducer Single Stage 40 ZDF 50 T3 I10 8 P2	50	3,5	10	26	58	45	M4	8	30	40	93,5	26	2	≤12
4.008.23.31.040.020.08.2	Planet Reducer Two-Stage 40 ZDF 50 T3 I20 8 P2	50	3,5	10	26	58	45	M4	8	30	40	119	26	2	≤15
4.008.23.31.060.005.11.2	Planet Reducer Single Stage 60 ZDF 200 T1 I5 11 P2	70	5,5	14	50	80	70	M4	11	50	60	114	35	3	≤8
4.008.23.31.060.010.11.2	Planet Reducer Single Stage 60 ZDF 200 T1 I10 11 P2	70	5,5	14	50	80	70	M4	11	50	60	114	35	3	≤8
4.008.23.31.060.020.11.2	Planet Reducer Two-Stage 60 ZDF 200 T1 I20 11 P2	70	5,5	14	50	80	70	M4	11	50	60	140	35	3	≤12
4.008.23.31.060.005.14.2	Planet Reducer Single Stage 60 ZDF 400 T3 I5 14 P2	70	5,5	14	50	80	70	M5	14	50	60	114	35	3	≤8
4.008.23.31.060.010.14.2	Planet Reducer Single Stage 60 ZDF 400 T3 I10 14 P2	70	5,5	14	50	80	70	M5	14	50	60	114	35	3	≤8
4.008.23.31.060.020.14.2	Planet Reducer Two-Stage 60 ZDF 400 T3 I20 14 P2	70	5,5	14	50	80	70	M5	14	50	60	140	35	3	≤12
4.008.23.31.080.005.19.2	Planet Reducer Single Stage 80 ZDF 750 T3 I5 19 P2	100	6,5	20	80	107	90	M6	19	70	80	144	40	3	≤8
4.008.23.31.080.010.19.2	Planet Reducer Single Stage 80 ZDF 750 T3 I10 19 P2	100	6,5	20	80	107	90	M6	19	70	80	162	40	3	≤8
4.008.23.31.080.020.19.2	Planet Reducer Two-Stage 80 ZDF 750 T3 I20 19 P2	100	6,5	20	80	107	90	M6	19	70	80	179.5	40	3	≤12
4.008.23.31.120.005.22.2	Planet Reducer Single Stage 120 ZDF 1000 T5 I5 22 P2	130	8,5	25	110	165	145	M8	22	110	130	207,2	55	4	≤8
4.008.23.31.120.010.22.2	Planet Reducer Single Stage 120 ZDF 1000 T5 I10 22 P2	130	8,5	25	110	165	145	M8	22	110	130	207,2	55	4	≤8
4.008.23.31.120.020.22.2	Planet Reducer Two-Stage 120 ZDF 1000 T5 I20 22 P2	130	8,5	25	110	165	145	M8	22	110	130	235	55	4	≤12
