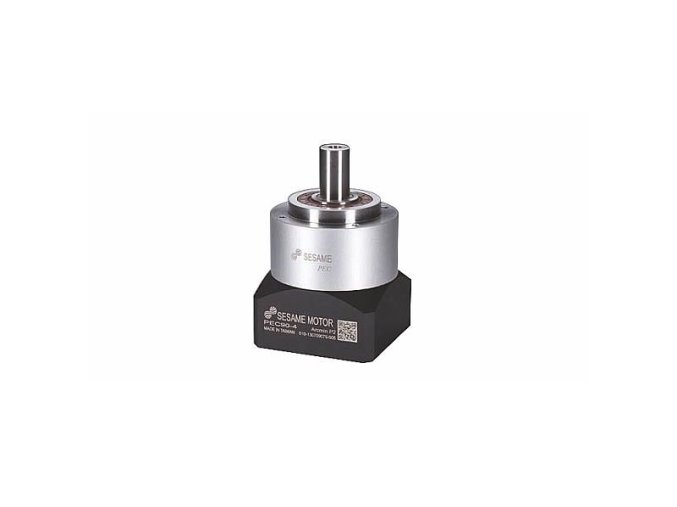

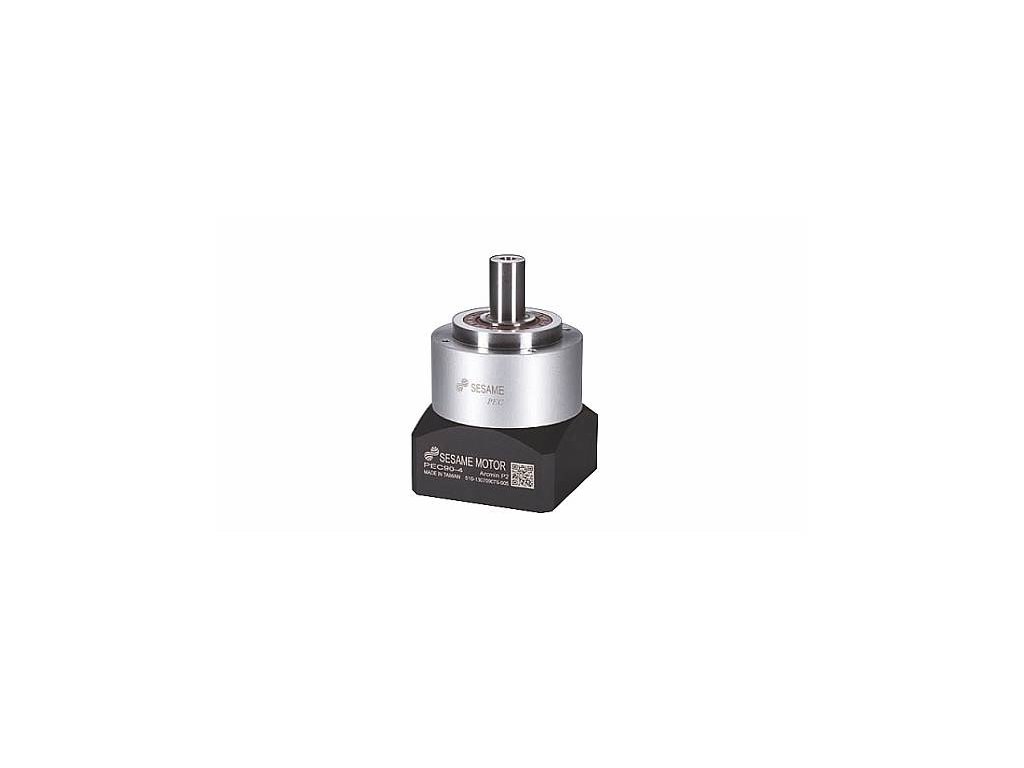

Single-Stage Planetary Gearbox (4.008.23.08.090.010.24.2)

Neohodnoceno

Series: PEC90-P2;
Backlash Arcmin: ≤9;
Ratio: 10;
D1: 80;
D3 h6: 22;
C1: 90;
C3: ≤24;
C5: 70;

Dostupnost	2 - 5 týdnů
11 579 Kč / ks

Parametry

Kód produktu	4.008.23.08.090.010.24.2
Kategorie	Sesame Reducers

Tisk Dotaz

Popis
Diskuze

Popis

Code	Name	Series	Backlash Arcmin	Ratio	D1	D3 h6	C1	C3	C5
4.008.23.08.050.010.11.2	Single-Stage Planetary Gearbox	PEC50-P2	≤12	10	44	13	46	≤11	30
4.008.23.08.070.003.14.2	Single-Stage Planetary Gearbox	PEC70-P2	≤9	03	62	16	70	≤14	50
4.008.23.08.070.004.14.2	Single-Stage Planetary Gearbox	PEC70-P2	≤9	04	62	16	70	≤14	50
4.008.23.08.070.005.14.2	Single-Stage Planetary Gearbox	PEC70-P2	≤9	05	62	16	70	≤14	50
4.008.23.08.070.007.14.2	Single-Stage Planetary Gearbox	PEC70-P2	≤9	07	62	16	70	≤14	50
4.008.23.08.070.010.14.2	Single-Stage Planetary Gearbox	PEC70-P2	≤9	10	62	16	70	≤14	50
4.008.23.08.070.015.14.2	Double-Stage Planetary Gearbox	PEC70-P2	≤12	15	62	16	70	≤14	50
4.008.23.08.070.020.14.2	Double-Stage Planetary Gearbox	PEC70-P2	≤12	20	62	16	70	≤14	50
4.008.23.08.090.003.24.2	Single-Stage Planetary Gearbox	PEC90-P2	≤9	03	80	22	90	≤24	70
4.008.23.08.090.005.24.2	Single-Stage Planetary Gearbox	PEC90-P2	≤9	05	80	22	90	≤24	70
4.008.23.08.090.007.24.2	Single-Stage Planetary Gearbox	PEC90-P2	≤9	07	80	22	90	≤24	70
4.008.23.08.090.010.19.2	Single-Stage Planetary Gearbox	PEC90-P2	≤9	10	80	22	90	≤19	70
4.008.23.08.090.010.24.2	Single-Stage Planetary Gearbox	PEC90-P2	≤9	10	80	22	90	≤24	70
4.008.23.08.090.015.24.2	Double-Stage Planetary Gearbox	PEC90-P2	≤12	15	80	22	90	≤24	70
4.008.23.08.090.020.24.2	Double-Stage Planetary Gearbox	PEC90-P2	≤12	20	80	22	90	≤24	70
4.008.23.08.090.030.24.2	Double-Stage Planetary Gearbox	PEC90-P2	≤12	30	80	22	90	≤24	70
4.008.23.08.090.040.24.2	Double-Stage Planetary Gearbox	PEC90-P2	≤12	40	80	22	90	≤24	70
4.008.23.08.090.070.24.2	Double-Stage Planetary Gearbox	PEC90-P2	≤12	70	80	22	90	≤24	70
4.008.23.08.120.005.28.2	Single-Stage Planetary Gearbox	PEC120-P2	≤7	05	108	32	115	≤28	95
4.008.23.08.120.010.28.2	Single-Stage Planetary Gearbox	PEC120-P2	≤7	10	108	32	115	≤28	95
4.008.23.08.155.005.35.2	Single-Stage Planetary Gearbox	PEC155-P2	≤7	05	140	40	145	≤35	110
4.008.23.08.155.010.35.2	Single-Stage Planetary Gearbox	PEC155-P2	≤7	10	140	40	145	≤35	110
4.008.23.08.155.040.35.2	Double-Stage Planetary Gearbox	PEC155-P2	≤9	40	140	40	145	≤35	110
