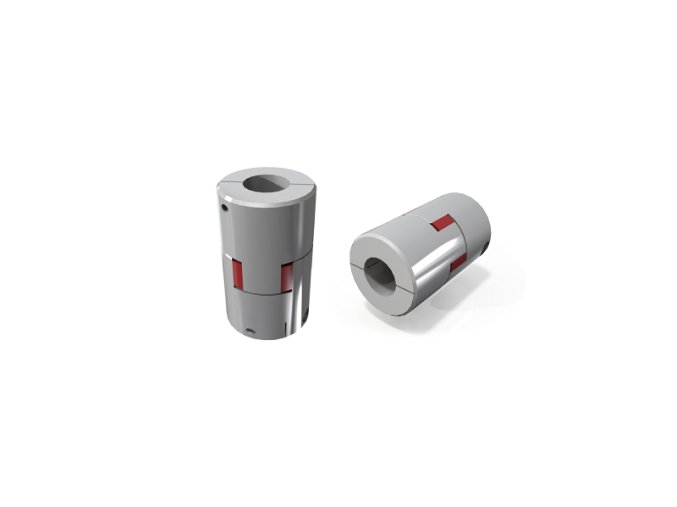

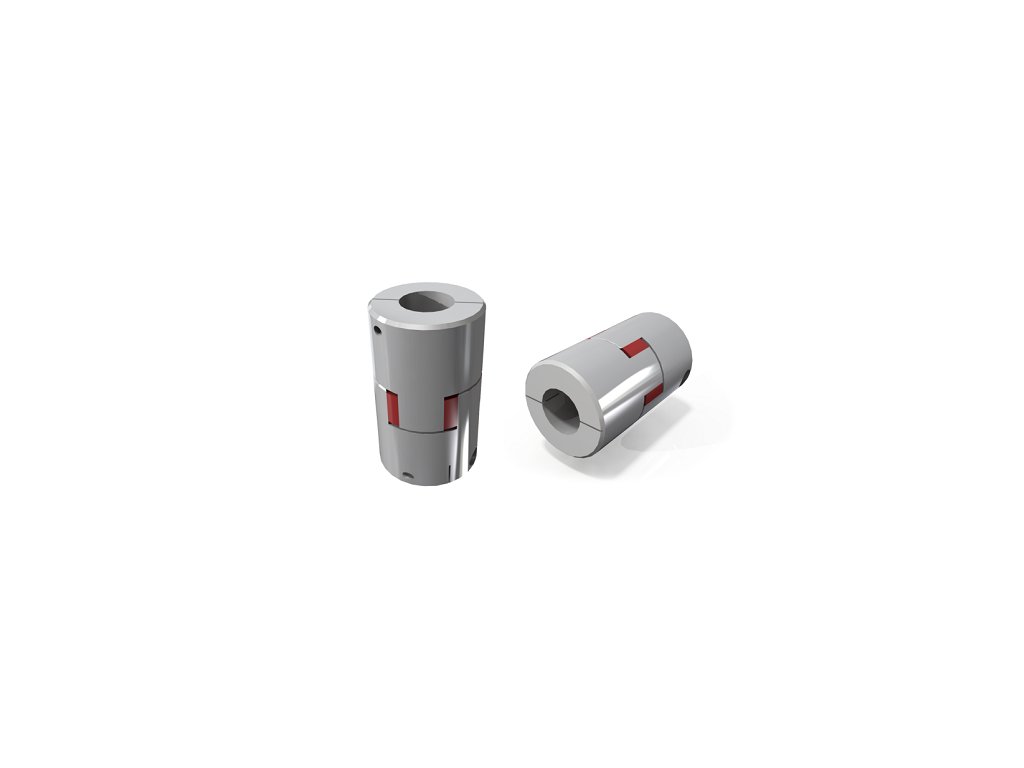

Servo Coupling (4.005.02.080.02)
Popis

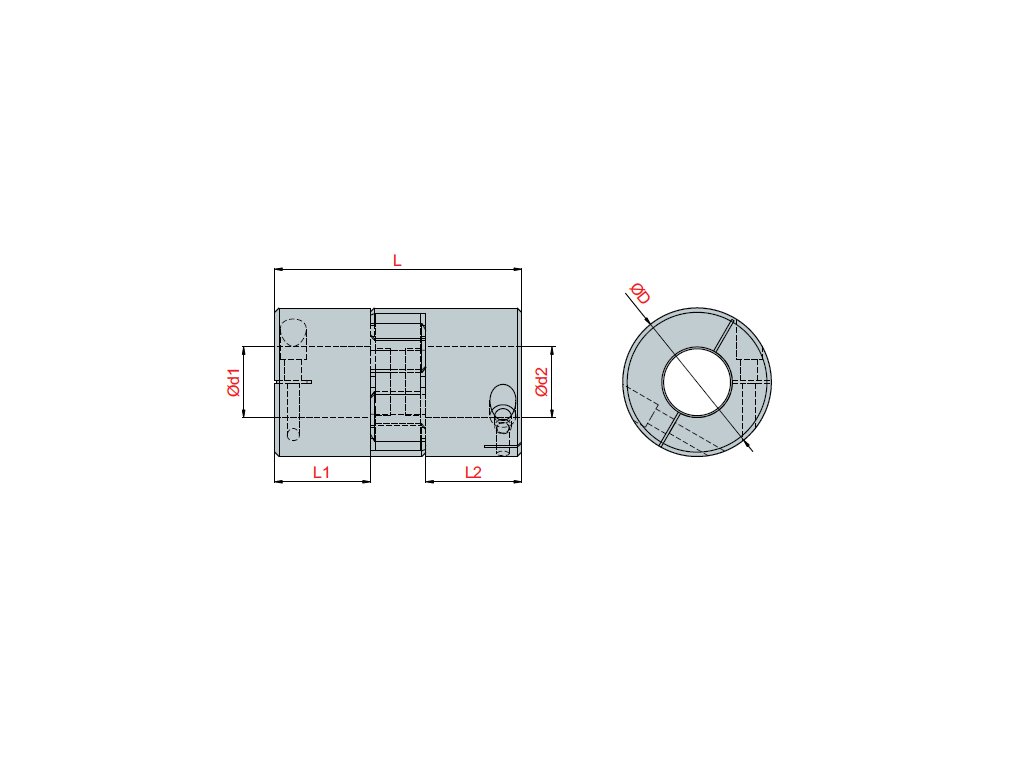

| Code | Name | Type | Ød min | Ød max | D | L | L1 L2 | M | Max Angular Misalignment (°) | Max Deviation of Axis (mm) | Max Torque (Nm) | Max Cycle (rpm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4.005.02.016.02 | Servo Coupling | JM-16C | 3 | 7 | 16 | 22 | 8 | 2,5 | 0,9 | +6.0,-0,3 | 4 | 24.700 |
| 4.005.02.020.02 | Servo Coupling | JM-20C | 4 | 10 | 20 | 30 | 10 | 3 | 0,9 | +0,8, -0,4 | 10 | 25.500 |
| 4.005.02.025.02 | Servo Coupling | JM-25C | 5 | 12 | 25 | 34 | 11 | 3 | 0,9 | +8,0,-0,4 | 18 | 17.000 |
| 4.005.02.030.02 | Servo Coupling | JM-30C | 5 | 16 | 30 | 35 | 11.5 | 3 | 0,9 | +1.0,-0.5 | 25 | 12.600 |
| 4.005.02.040.02 | Servo Coupling | JM-40C | 8 | 22 | 40 | 66 | 25.5 | 5 | 0,9 | +1.2,-0.5 | 34 | 9.000 |
| 4.005.02.055.02 | Servo Coupling | JM-55C | 10 | 28 | 55 | 78 | 30.5 | 6 | 0,9 | +1.4,-0.5 | 120 | 6.500 |
| 4.005.02.065.02 | Servo Coupling | JM-65C | 12 | 38 | 65 | 90 | 35.5 | 8 | 0,9 | +1,5,-0,7 | 320 | 5.260 |
| 4.005.02.080.02 | Servo Coupling | JM-80C | 16 | 45 | 80 | 114 | 45 | 8 | 0,9 | +1,8,-0,7 | 650 | 4.600 |
| 4.005.02.095.02 | Servo Coupling | JM-95C | 20 | 55 | 95 | 126 | 51 | 10 | 0,9 | +2.0,-1.0 | 900 | 3.800 |
