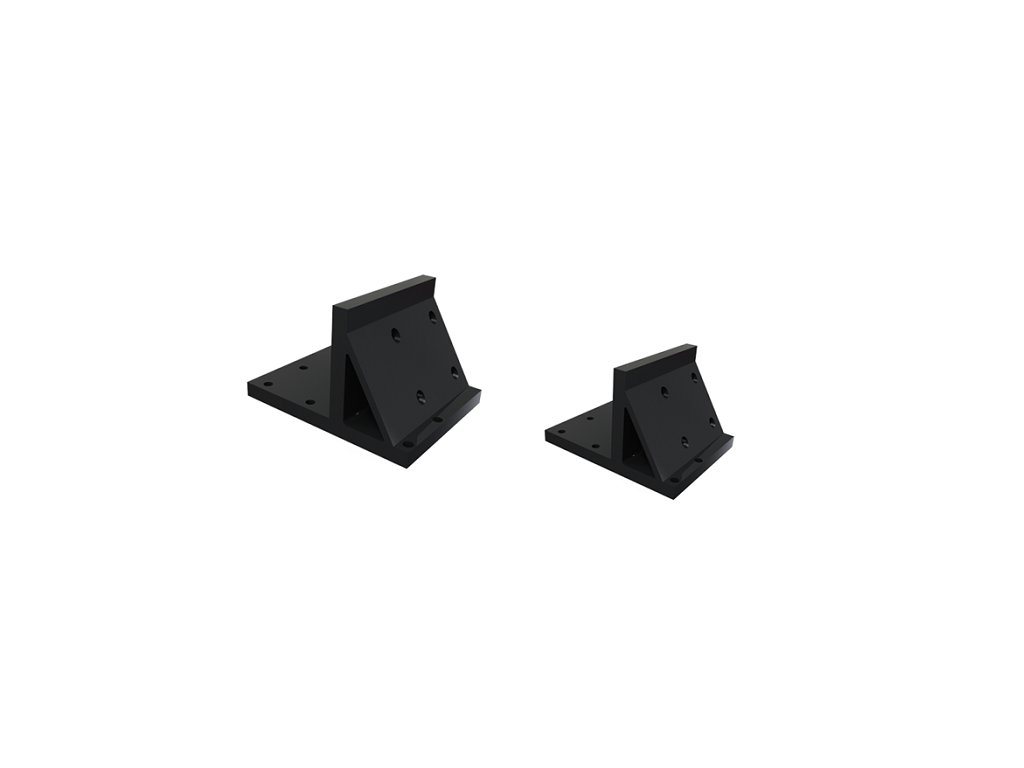

Module Axis Connecting Part Left (7.26.080160.000000.02.10)
Popis

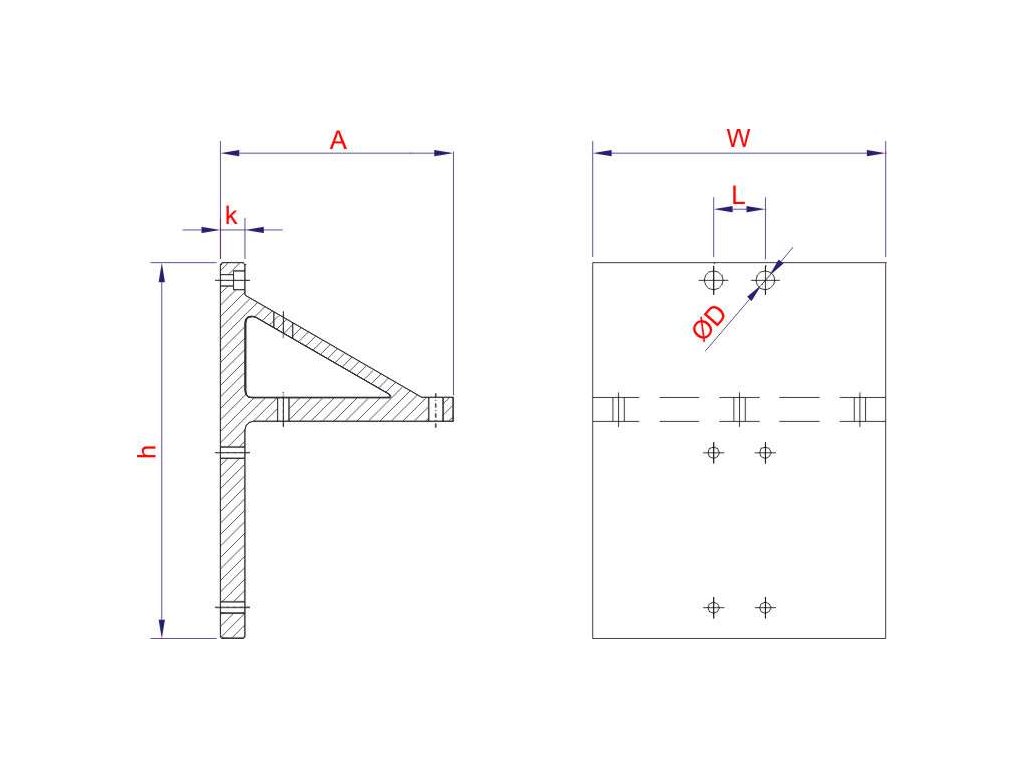

| Code | Name | Connection Point | h | ØD | k | W | A | L |
|---|---|---|---|---|---|---|---|---|
| 7.26.080064.000000.01.10 | Module Axis Connecting Part Right | 80x80 - 64x64 | 218 | 8,5 | 18 | 170 | 110 | 30 |
| 7.26.080064.000000.02.10 | Module Axis Connecting Part Left | 80x80 - 64x64 | 218 | 8,5 | 14 | 170 | 110 | 30 |
| 7.26.080160.000000.01.10 | Module Axis Connecting Part Right | 80x80 - 80x160 | 218 | 8,5 | 18 | 210 | 110 | 60 |
| 7.26.080160.000000.02.10 | Module Axis Connecting Part Left | 80x80 - 80x160 | 218 | 8,5 | 14 | 200 | 110 | 60 |
| 7.26.100100.080080.01.10 | Module Axis Connecting Part Right | 100x100 - 100x100 | 218 | 8,5 | 18 | 210 | 132 | 75 |
| 7.26.100100.080080.02.10 | Module Axis Connecting Part Left | 100x100 - 80x80 | 218 | 8,5 | 14 | 200 | 140 | 75 |
| 7.26.080160.080080.01.10 | Module Axis Connecting Part Right | 80x160 - 80x80 | 218 | 6,5 | 18 | 170 | 140 | 60 |
| 7.26.080160.080080.02.10 | Module Axis Connecting Part Left | 80x160 - 80x80 | 218 | 6,5 | 14 | 170 | 140 | 60 |
