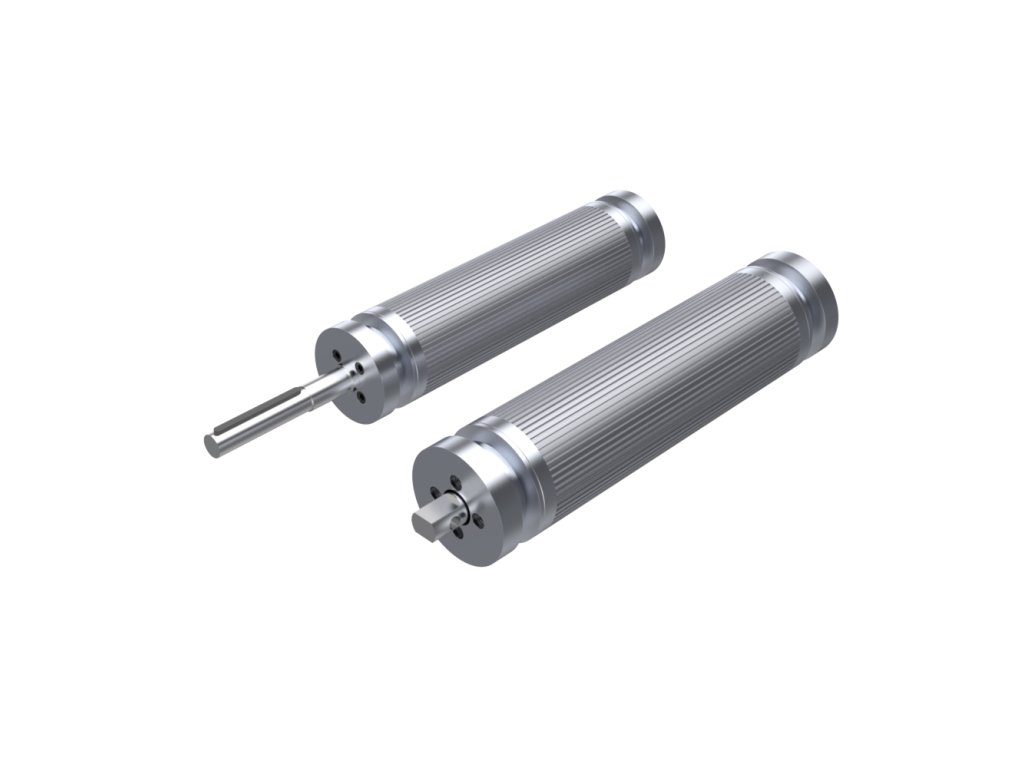

Ø76 Channeled Tension Drum (3.008.01.076.1000.3)

Neohodnoceno

1 z 2

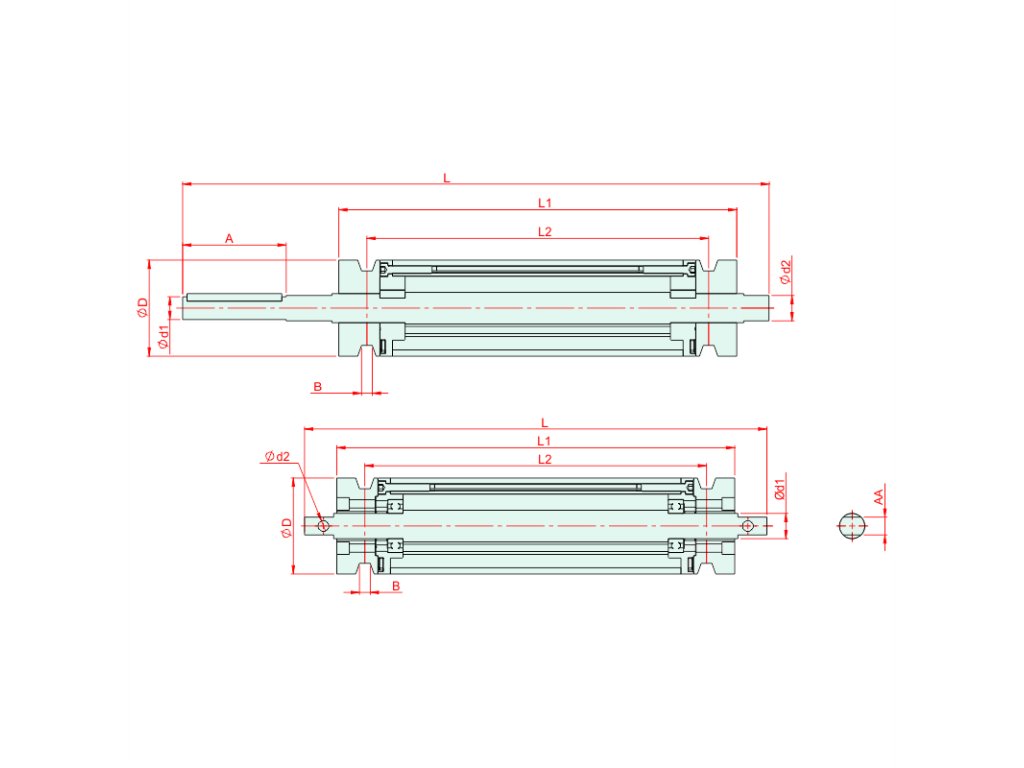

Profile in Use: 23x75;
Belt Width: 1000;
L: 1066;
L1: 1015;
L2: 970.5;
B: 8.5;
ØD: 76;
Ød1: 20;
Ød2: 8.5;
A: -;
AA: 14;
Material: Alm.Extrz.;
Weight (gr): 7744;

Dostupnost	2 - 5 týdnů
4 260 Kč / ks

Parametry

Kód produktu	3.008.01.076.1000.3
Kategorie	Napínací a hnací bubny

Tisk Dotaz

Popis
Diskuze

Popis

Code	Name	Profile in Use	Belt Width	L	L1	L2	B	ØD	Ød1	Ød2	A	AA	Material	Weight (gr)
3.008.02.076.0600.2	Ø76 Grooved Drive Drum	23x127	600	817.2	615	570.5	8.5	76	18	20	78	-	Alm.Extrz.	5280
3.008.02.076.1000.2	Ø76 Grooved Drive Drum	23x127	1000	1217.2	1015	970.5	8.5	76	18	20	78	-	Alm.Extrz.	8018
3.008.02.076.0300.3	Ø76 Grooved Drive Drum	23x75	300	464.1	315	270.5	8.5	76	18	20	82	-	Alm.Extrz.	3170
3.008.01.076.0300.3	Ø76 Channeled Tension Drum	23x75	300	366	315	270.5	8.5	76	20	8.5	-	14	Alm.Extrz.	2915
3.008.02.076.0450.3	Ø76 Grooved Drive Drum	23x75	450	514.1	465	420.5	8.5	76	18	20	82	-	Alm.Extrz.	4225
3.008.01.076.0450.3	Ø76 Channeled Tension Drum	23x75	450	516	465	420.5	8.5	76	20	8.5	-	14	Alm.Extrz.	3960
3.008.02.076.0600.3	Ø76 Grooved Drive Drum	23x75	600	764.1	615	570.5	8.5	76	18	20	-	14	Alm.Extrz.	3960
3.008.01.076.0600.3	Ø76 Channeled Tension Drum	23x75	600	666	615	570.5	8.5	76	20	8.5	-	14	Alm.Extrz.	5000
3.008.02.076.0800.3	Ø76 Grooved Drive Drum	23x75	800	964.1	815	770.5	8.5	76	18	20	82	-	Alm.Extrz.	6615
3.008.01.076.0800.3	Ø76 Channeled Tension Drum	23x75	800	866	815	770.5	8.5	76	20	8.5	-	14	Alm.Extrz.	6291
3.008.02.076.1000.3	Rowkowany bęben napędowy Ø76	23x75	1000	1164.1	1015	970.5	8.5	76	18	20	82	-	Alm.Extrz.	8018
3.008.01.076.1000.3	Ø76 Channeled Tension Drum	23x75	1000	1066	1015	970.5	8.5	76	20	8.5	-	14	Alm.Extrz.	7744
