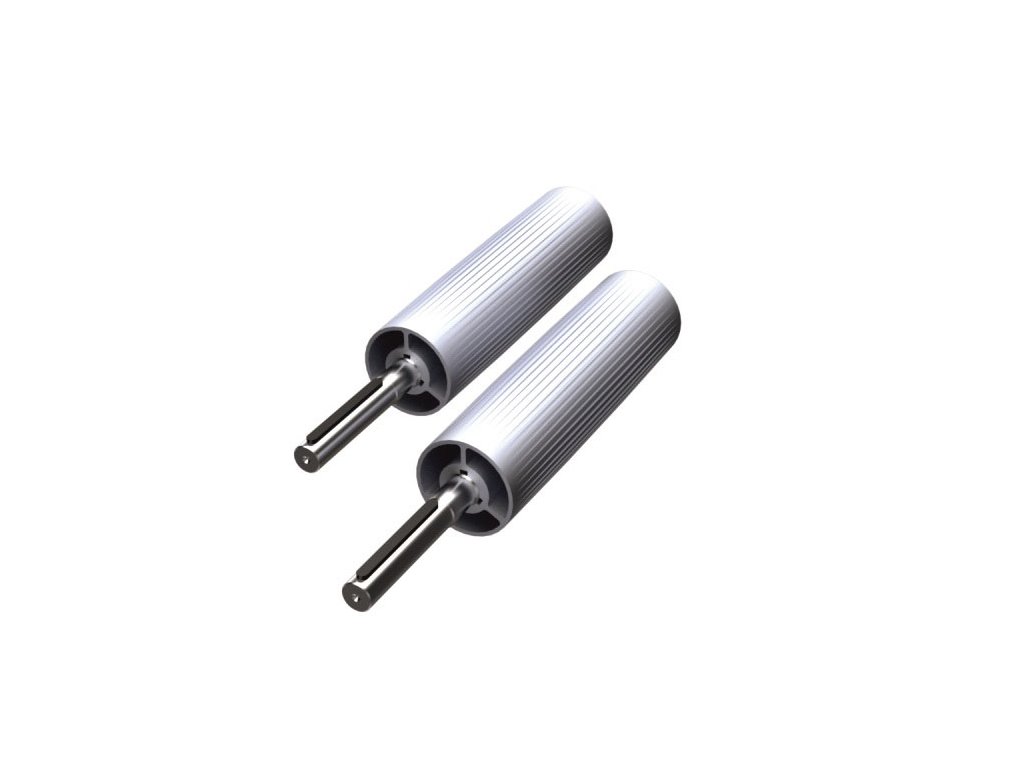

Ø45 Knurled Drive Drum (3.008.02.045.090.01)
Popis

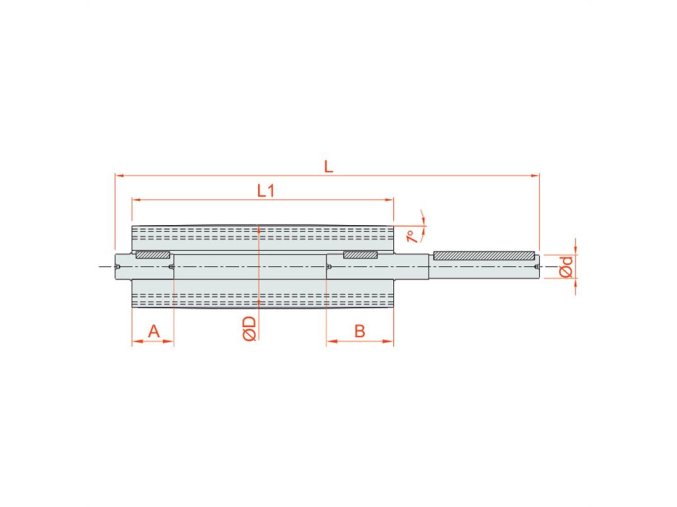

| Code | Name | Belt Width | A | B | L | L1 | ØD | Ød | Weight (gr) | Material |
|---|---|---|---|---|---|---|---|---|---|---|
| 3.008.02.045.045.01 | Ø45 Knurled Drive Drum | 40 | 25 | 45 | 140 | 43 | 50 | 14 | 270 | Aluminium |
| 3.008.02.045.090.01 | Ø45 Knurled Drive Drum | 85 | 25 | 45 | 185 | 88 | 50 | 14 | 380 | Aluminium |
| 3.008.02.045.135.01 | Ø45 Knurled Drive Drum | 130 | 25 | 45 | 230 | 133 | 50 | 14 | 470 | Aluminium |
| 3.008.02.045.180.01 | Ø45 Knurled Drive Drum | 175 | 25 | 45 | 275 | 178 | 50 | 14 | 550 | Aluminium |
