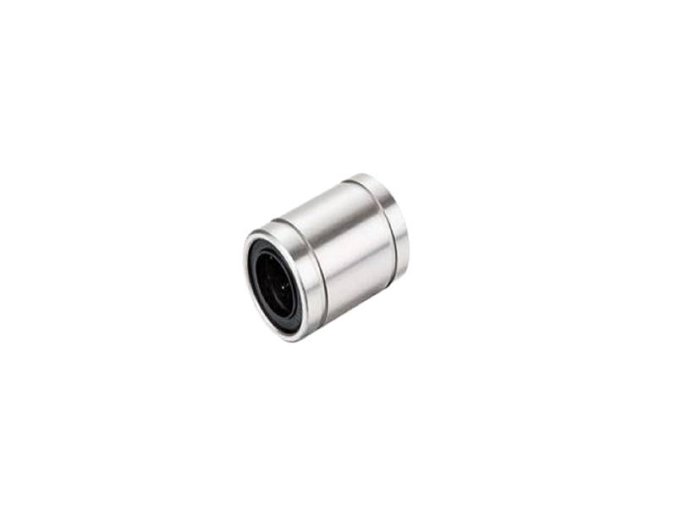

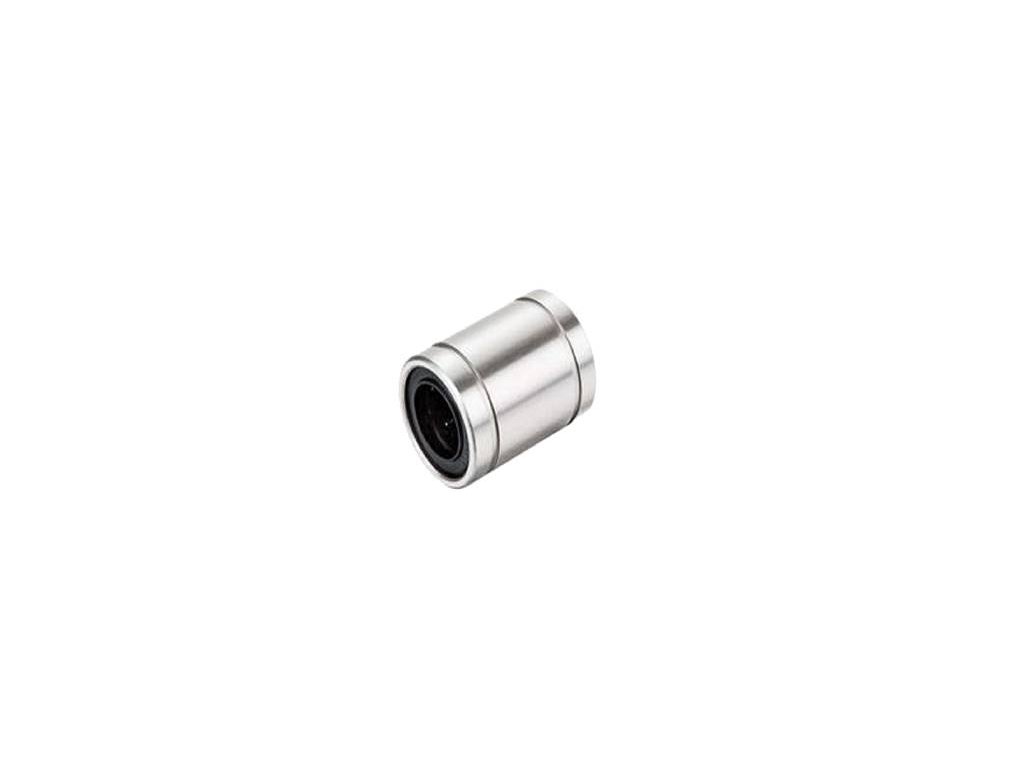

Enclosed Linear Bearing (4.009.001.12.01)
Popis

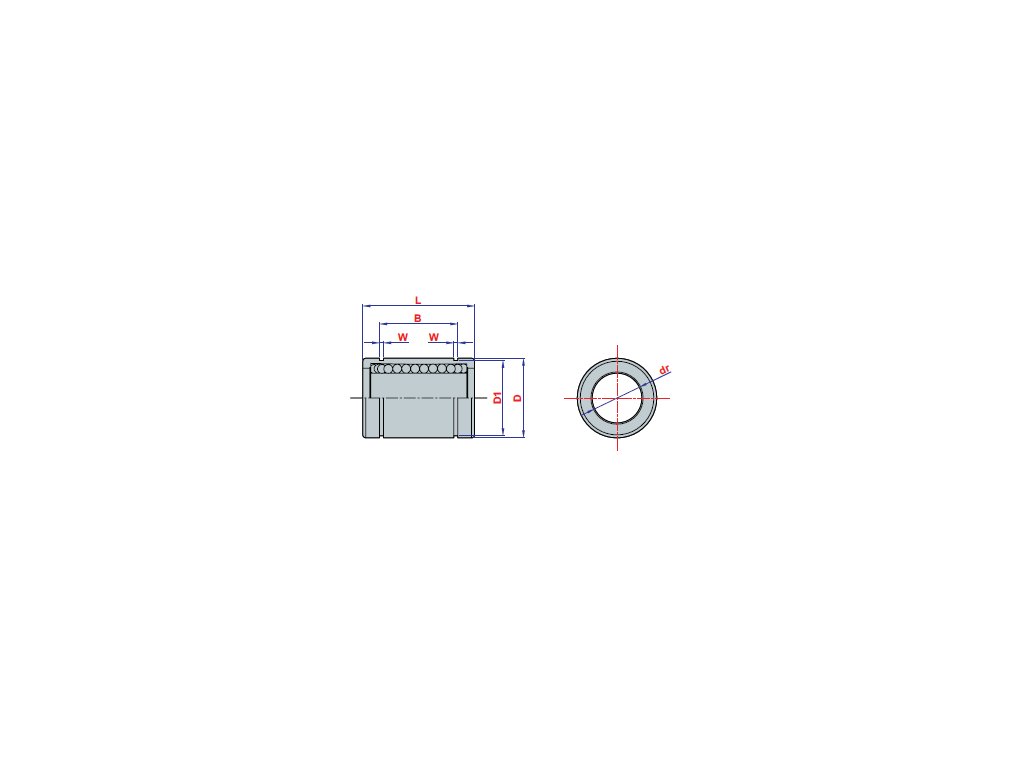

| Code | Name | Type | Ball Row Quantity | d | D | L | B | W | D1 | Dynamic Kg | Static Kg |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4.009.001.08.01 | Enclosed Linear Bearing | LME 8 UU | 4 | 8 | 16 | 25 | 16,5 | 1,1 | 15,2 | 372 | 549 |
| 4.009.001.12.01 | Enclosed Linear Bearing | LME 12 UU | 4 | 12 | 22 | 32 | 22,9 | 1,3 | 21 | 510 | 784 |
| 4.009.001.16.01 | Enclosed Linear Bearing | LME 16 UU | 5 | 16 | 26 | 36 | 24,9 | 1,3 | 24,9 | 578 | 892 |
| 4.009.001.20.01 | Enclosed Linear Bearing | LME 20 UU | 5 | 20 | 32 | 45 | 31,5 | 1,6 | 30,3 | 862 | 1370 |
| 4.009.001.25.01 | Enclosed Linear Bearing | LME 25 UU | 6 | 25 | 40 | 58 | 44,1 | 1,85 | 37,5 | 980 | 1570 |
| 4.009.001.30.01 | Enclosed Linear Bearing | LME 30 UU | 6 | 30 | 47 | 68 | 52,1 | 1,85 | 44,5 | 1570 | 2740 |
| 4.009.001.40.01 | Enclosed Linear Bearing | LME 40 UU | 6 | 40 | 62 | 80 | 60,6 | 2,15 | 59 | 2160 | 4020 |
