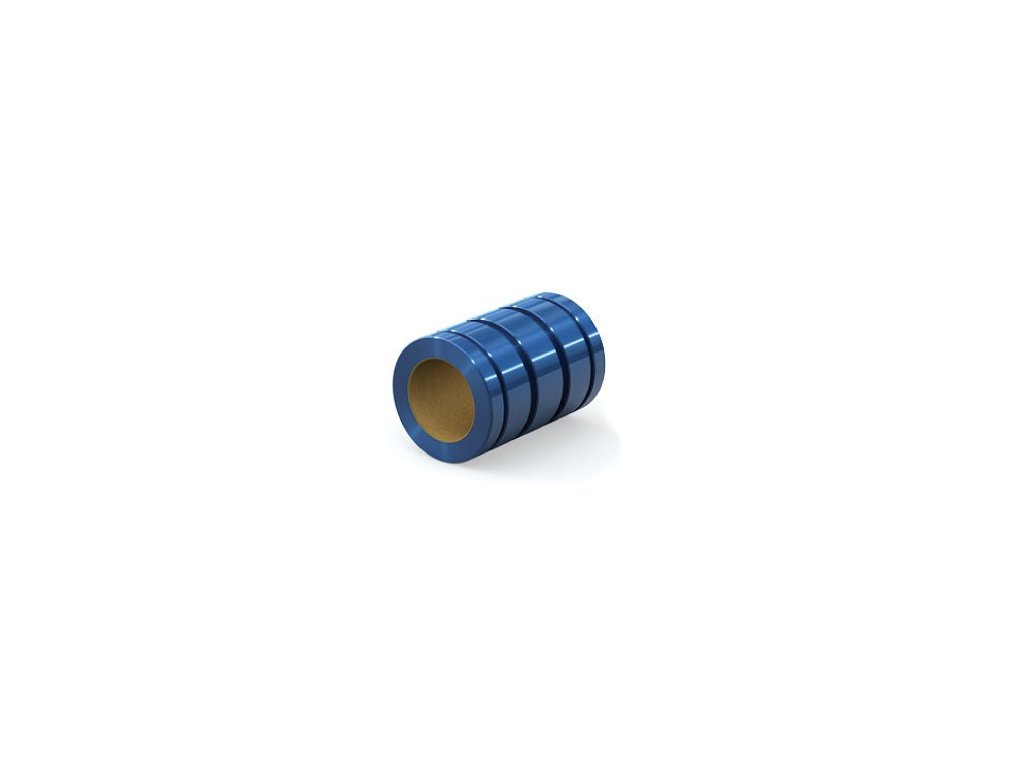

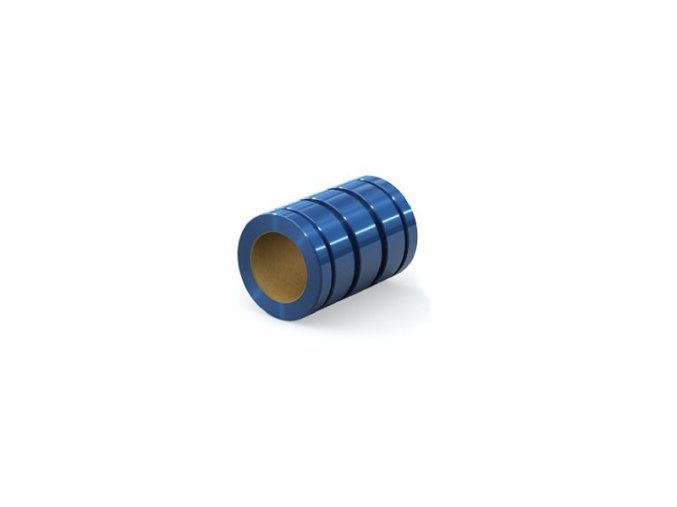

Teflon Bearing - Closed Type (4.009.020.10.01)
Popis

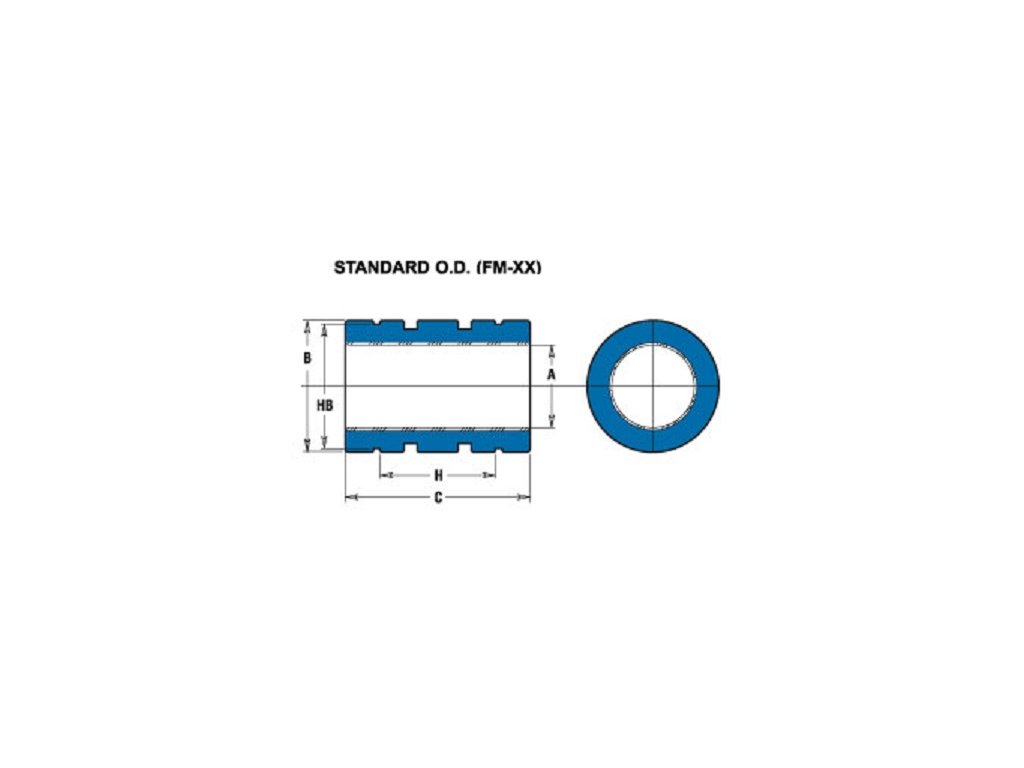

| Code | Name | Product Name (Preinstallation Series) | Product Name (Standard Series) | C | H | HB | B | A |
|---|---|---|---|---|---|---|---|---|
| 4.009.020.10.01 | Teflon Bearing - Closed Type | FM 10 | - | 29 | 19,4 | 18 | 19 | 10.013-10.035 |
| 4.009.020.16.01 | Teflon Bearing - Closed Type | FM 16 | - | 36 | 22 | 24,9 | 26 | 16.016-16.043 |
| 4.009.021.16.01 | Teflon Bearing - Closed Type | - | FMC 16 | 36 | 22 | 24,9 | 26 | 16.066-16.093 |
| 4.009.020.20.01 | Teflon Bearing - Closed Type | FM 20 | - | 45 | 28 | 30,3 | 32 | 20.020-20.053 |
| 4.009.021.25.01 | Teflon Bearing - Closed Type | - | FMC 25 | 58 | 40 | 37,5 | 40 | 25.096-25.129 |
| 4.009.020.30.01 | Teflon Bearing - Closed Type | FM 30 | - | 68 | 48 | 44,5 | 47 | 30.020-30.053 |
| 4.009.021.30.01 | Teflon Bearing - Closed Type | - | FMC 30 | 68 | 48 | 44,5 | 47 | 30.096-30.129 |
